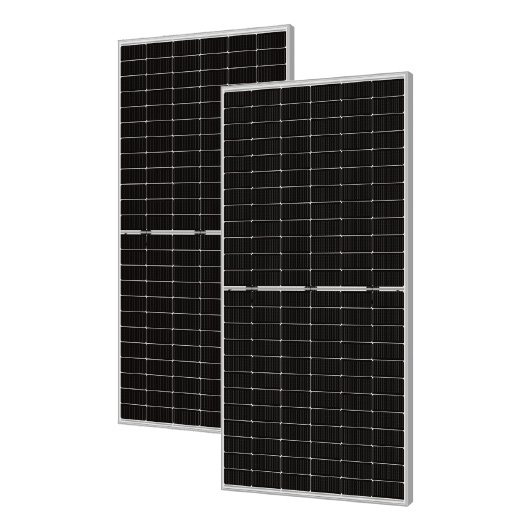

72 Pcs Bifacial Double Glass Module

Maximum Power Output:560W
Maximum Module Efficiency:21.7%
Power Output Tolerance:0~+5W

  • 72 Pcs Bifacial Double Glass Module

Description

   Key Features

Conversion efficiency:

Module efficiency leading in industry, up to 21.7%

Double Sided power generation:

Double-sided rate up to 70%, additional power generation of modules is up to 25% higher than conventional modules

Excellent product appearance and performanceHigh Thermal Stability:

Both side cell, symmetrical design, low risk of micro-crack

Reduced mismatch loss:

Half-cut cell technology provides optimized energy production under inter-row shading conditions

High reliability:

3-fold IEC new standard tests passed, 15-year material warranty, and 30-year power warranty

Extensive applications Scenes:

First choice of large power plants





   Mechanical Parameters

Parameter Details
Cell Type P Type
Module Size 2278×1134×30mm
Glass Thickness 2.0mm+2.0mm
Module Weight 31.4Kg
Output Cable 4mm², cable length +400mm/-200mm (customizable on demand)
Connector PV-DA02M2-XY (or customized)
Junction Box IP68, 3 bypass diodes
Frame Anodized aluminium alloy (composite frame optional)


   Operating Parameters

Parameter Details
Max. System Voltage DC1500V
Power Tolerance 0~+5W
Operating Temperature -40℃~+85℃
Max. Fuse Rated Current 30A
Static Load Front 5400Pa, Back 2400Pa
Packing Data 36 pcs/Pallet; 504 pcs/Truck (9.6m); 720 pcs/Truck (13.0m); 864 pcs/Truck (17.5m); 180(20GP); 720(40HQ)
