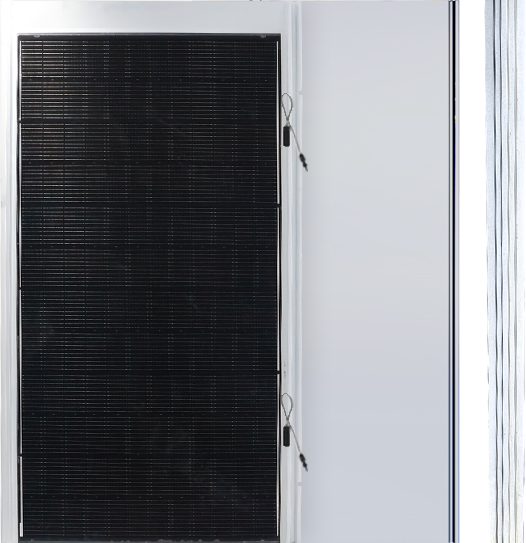

BIPV Steel Tile / XSCM-520-T / Integrated Solar Steel Roof Tile / Durable & Efficient / Can replace traditional color steel sheets

Name: BIPV Steel Tile / XSCM-520-T / Integrated Solar Steel Roof Tile / Durable & Efficient / Can replace traditional color steel sheets
Brand: Techrise
SKU: BIPV Steel Tile - X Solar - XSCM-520-T
Availability: InStock
Rating: 5 (1 reviews)

No.BIPV Steel Tile - X Solar - XSCM-520-T

X-SOLAR BIPV Steel Roof Tile: Your Roof, Your Power Plant.

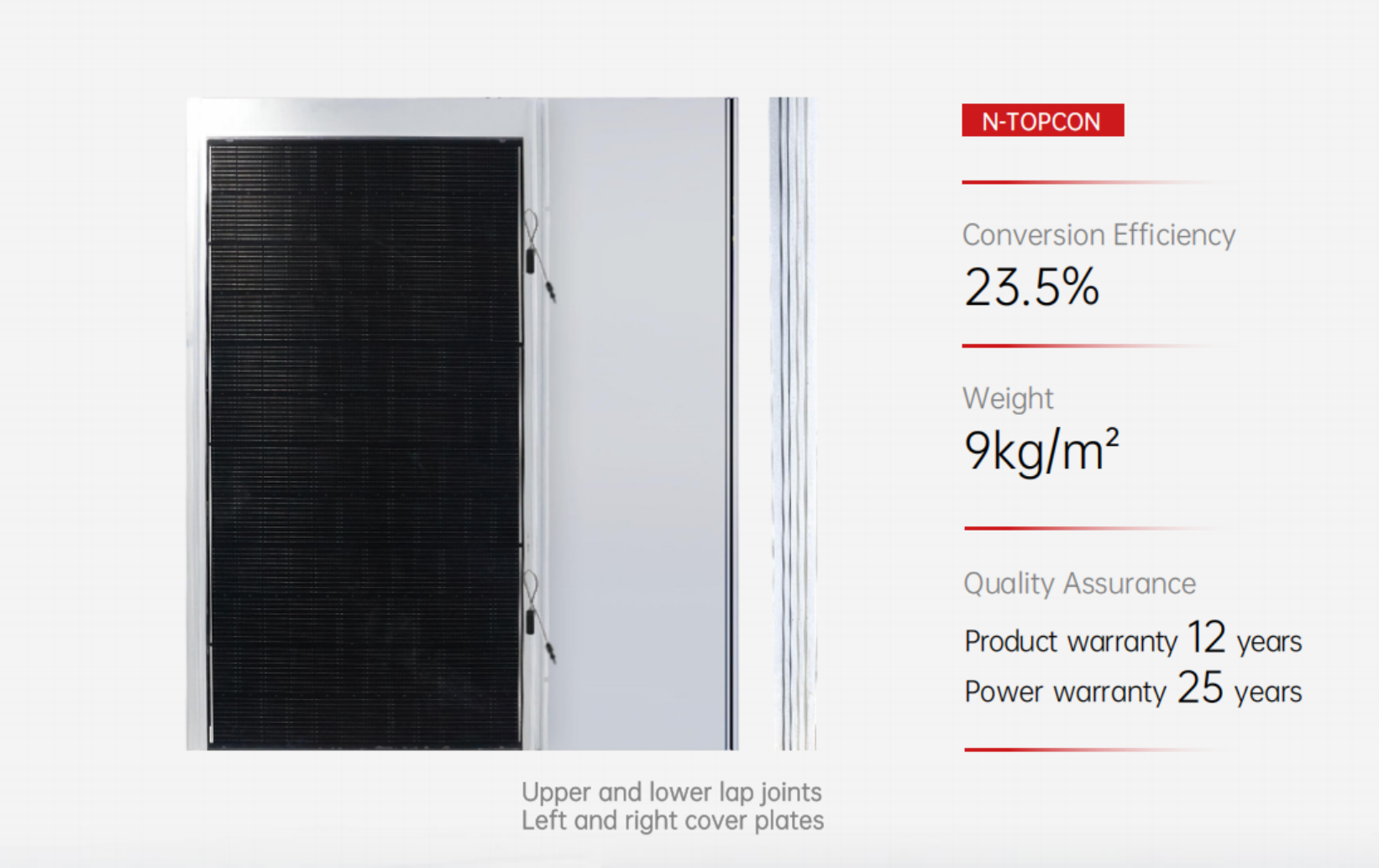

Our XSCM-520-T photovoltaic steel tile directly replaces traditional roofing, seamlessly integrating power generation with building construction. Featuring TOPCon technology with 23.5% conversion efficiency and 520W peak power per unit. Weighing only 9kg/m² yet withstands 5400Pa snow load, backed by 25-year linear power warranty - the ideal roofing solution for industrial and commercial buildings.

Technical Parameters

• Max Power: 520W • Conversion Efficiency: 23.5% • Optimal Operating Voltage: ~39.25V • Optimal Operating Current: ~13.25A • Operating Temperature: -40°C to +85°C • Max System Voltage: 1000V / 1800V DC

Physical Parameters

• Weight: 9 kg/m² • Cell Type: TOPCon (192mm) • Cell Layout: 152 cells • Frame: Anti-corrosion coating • Load Capacity: 5400Pa (Front) / 2400Pa (Rear)

Warranty Information

• Product Warranty: 12 years • Power Warranty: 25 years linear output • Safety Rating: Class A

Application Scenarios

• Industrial & commercial steel roofs • Warehouse and factory buildings • Agricultural and logistics facilities • New energy-integrated building construction • Retrofitting existing metal roofs with solar function

Installation & Compatibility

• Integrated roofing and PV function • IP68 junction box • MC4-compatible connectors • Custom cable length available • Easy installation with interlocking design
