Black Curved-Tile/XSDCM-50-H/Multiple color options

Name: Black Curved-Tile/XSDCM-50-H/Multiple color options
Brand: Techrise
SKU: PV Module-X-Solar-XSDCM-50-H
Availability: InStock
Rating: 5 (1 reviews)

No.PV Module-X-Solar-XSDCM-50-H

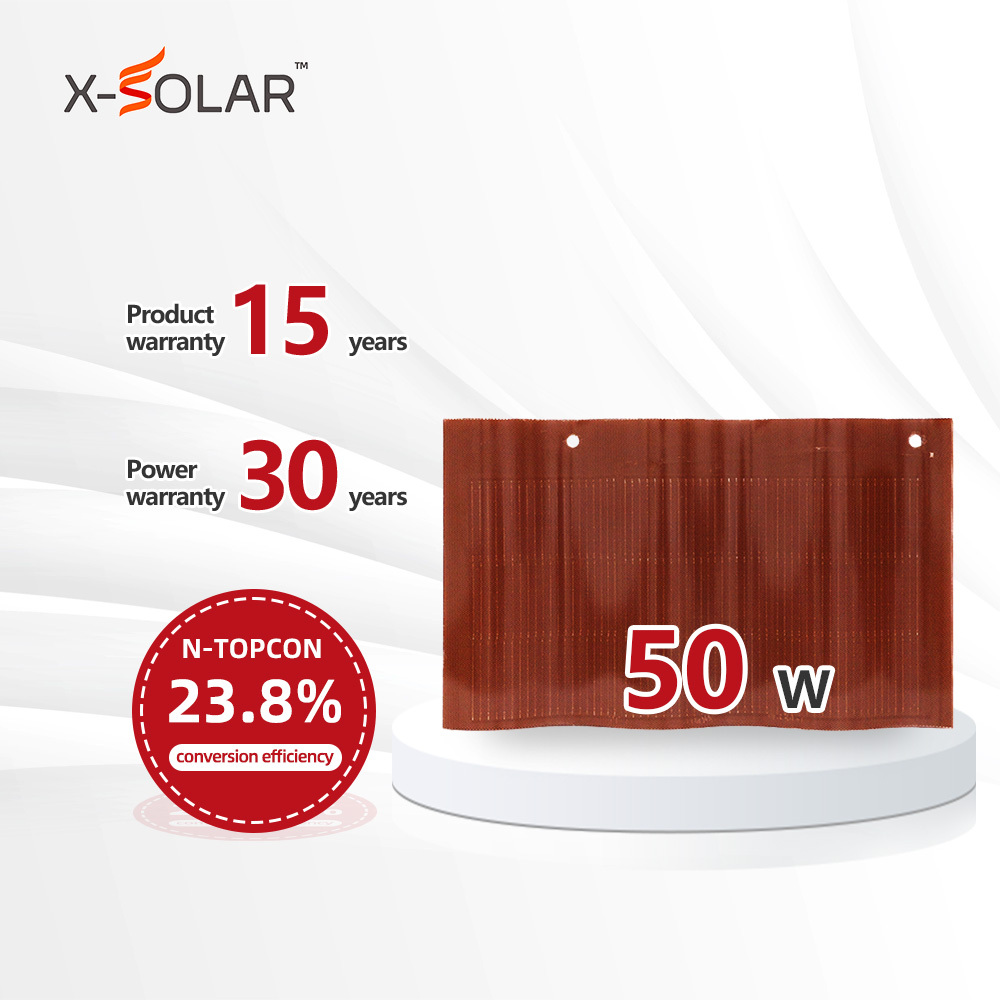

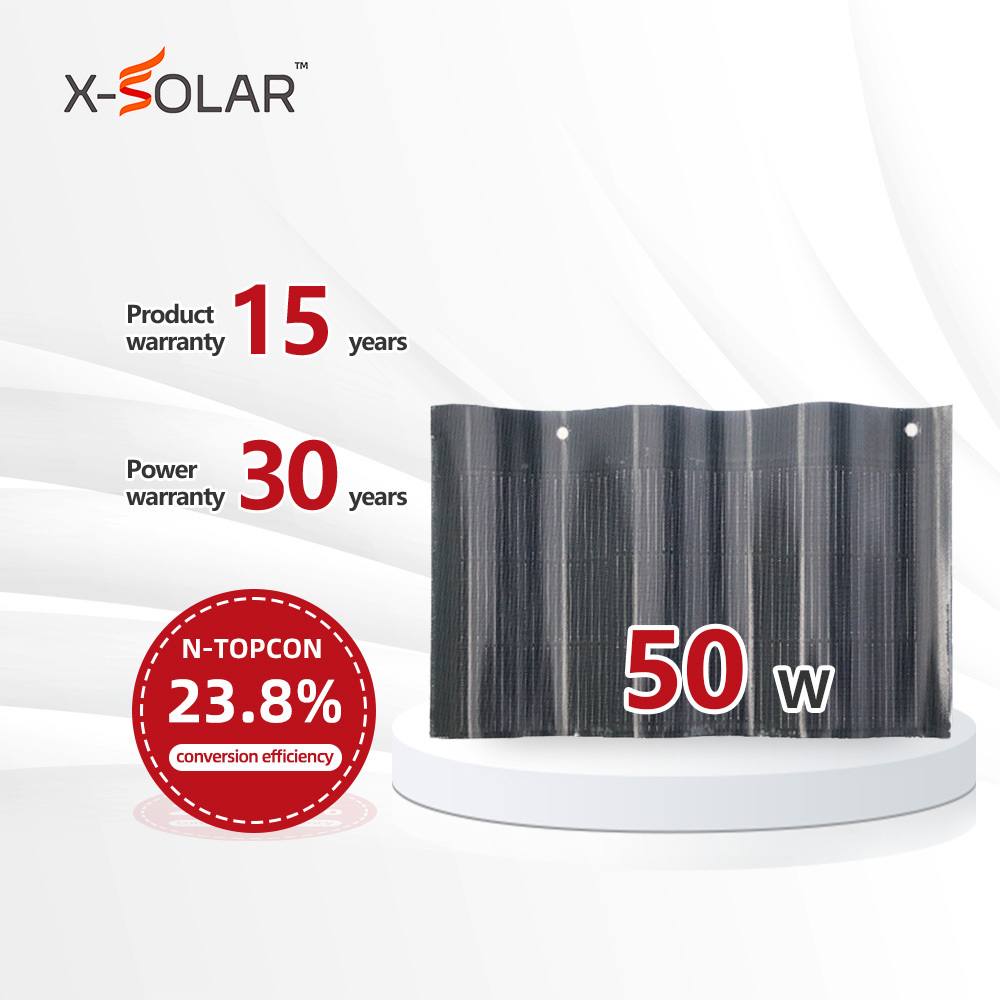

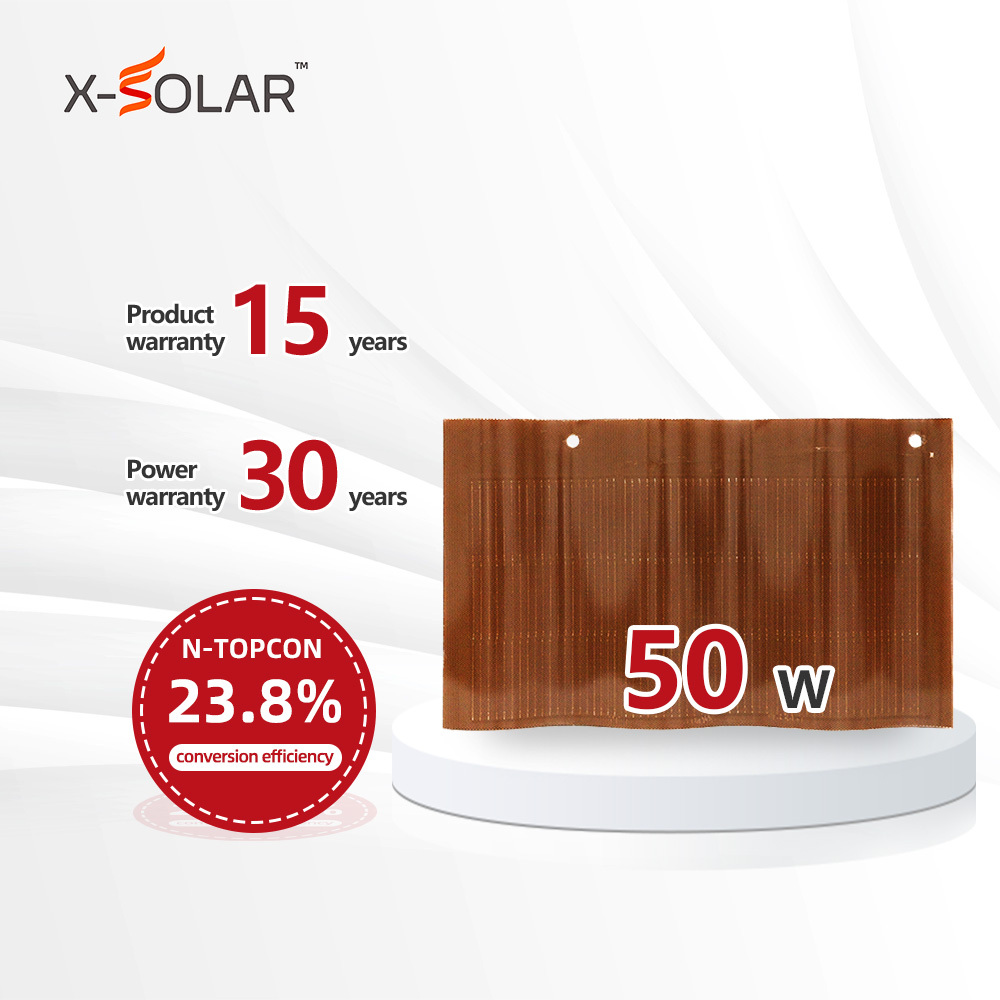

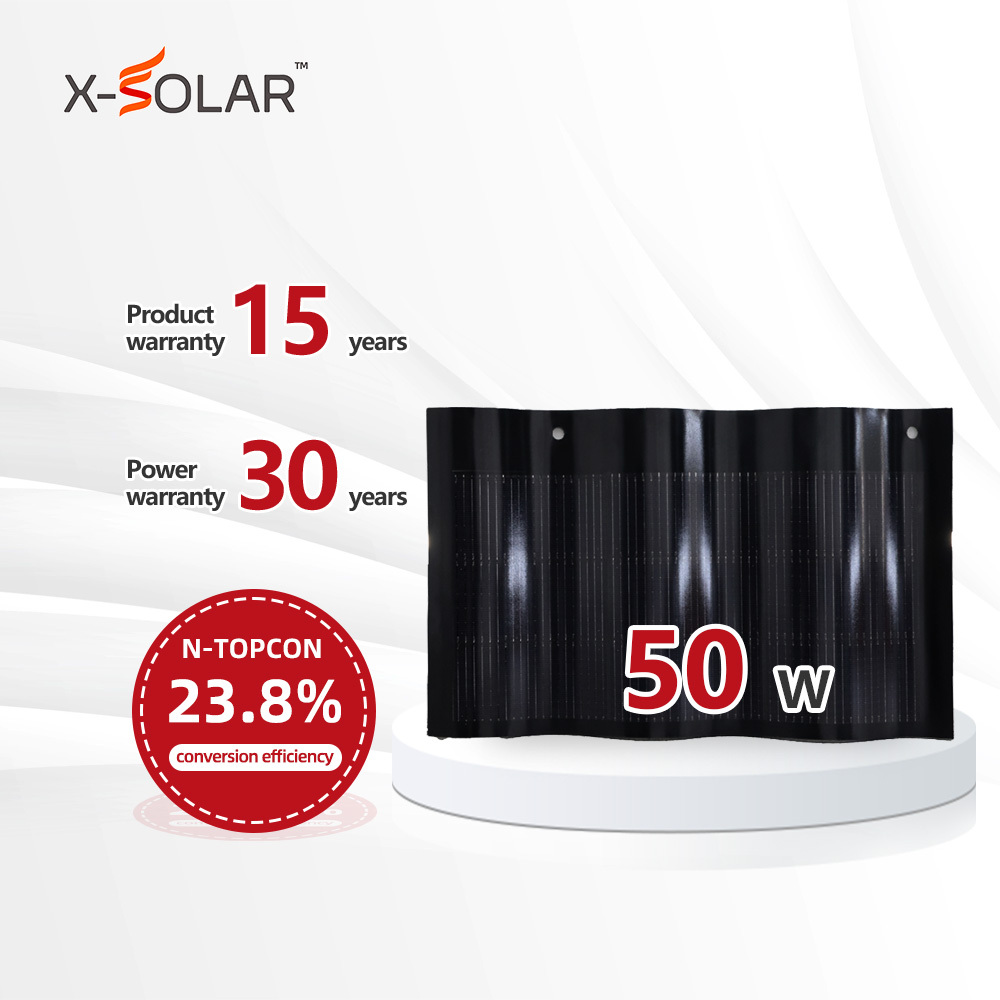

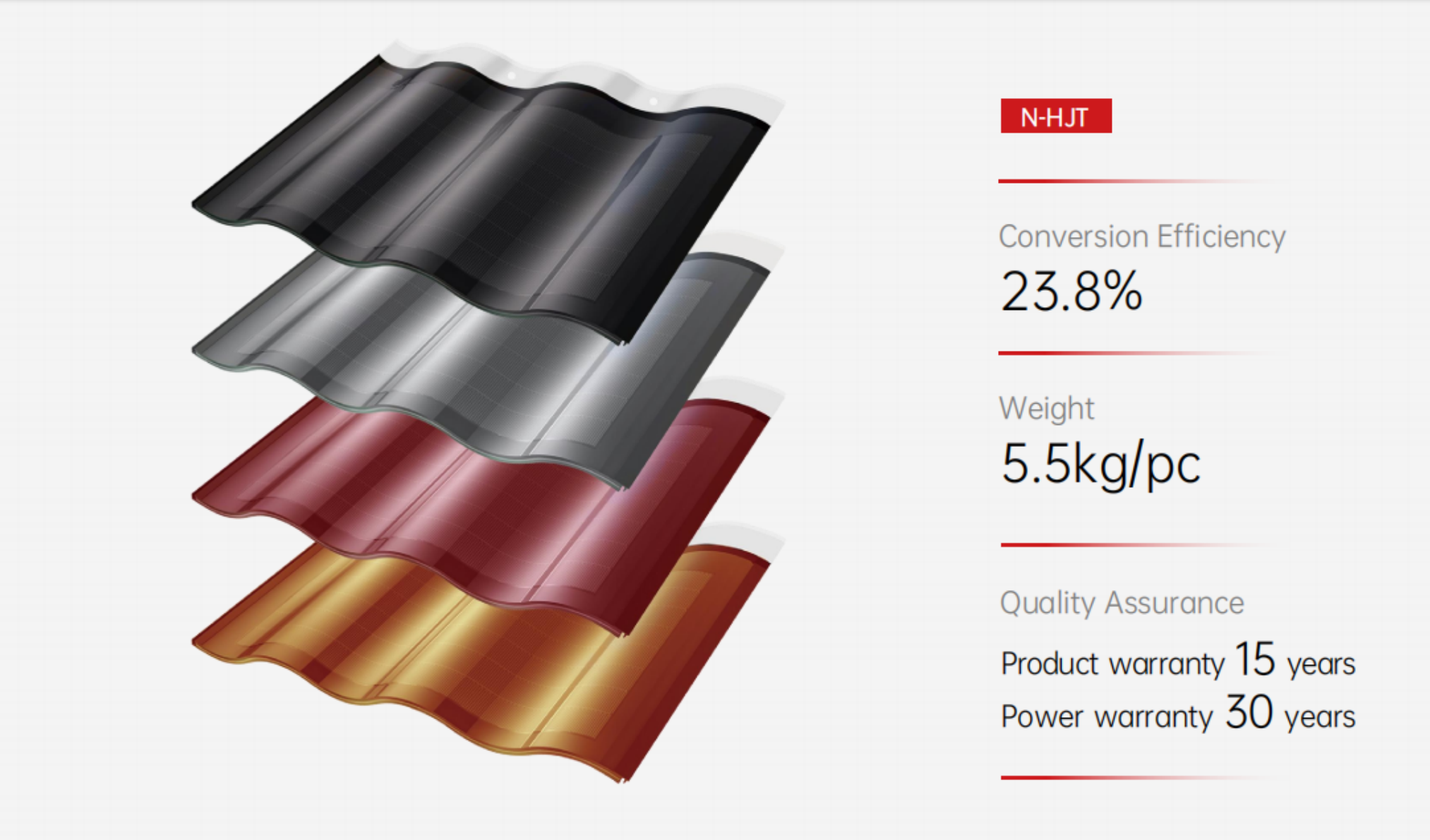

X-SOLAR Curved Tile – XSDCM-50-H

The X-SOLAR Curved Tile seamlessly blends solar technology with architectural aesthetics. Designed for curved and traditional rooftops, this dual-glass solar tile features high-efficiency HJT cells and a lightweight, flexible structure. Ideal for residential, commercial, and heritage buildings, it offers an elegant and efficient energy solution without compromising design.

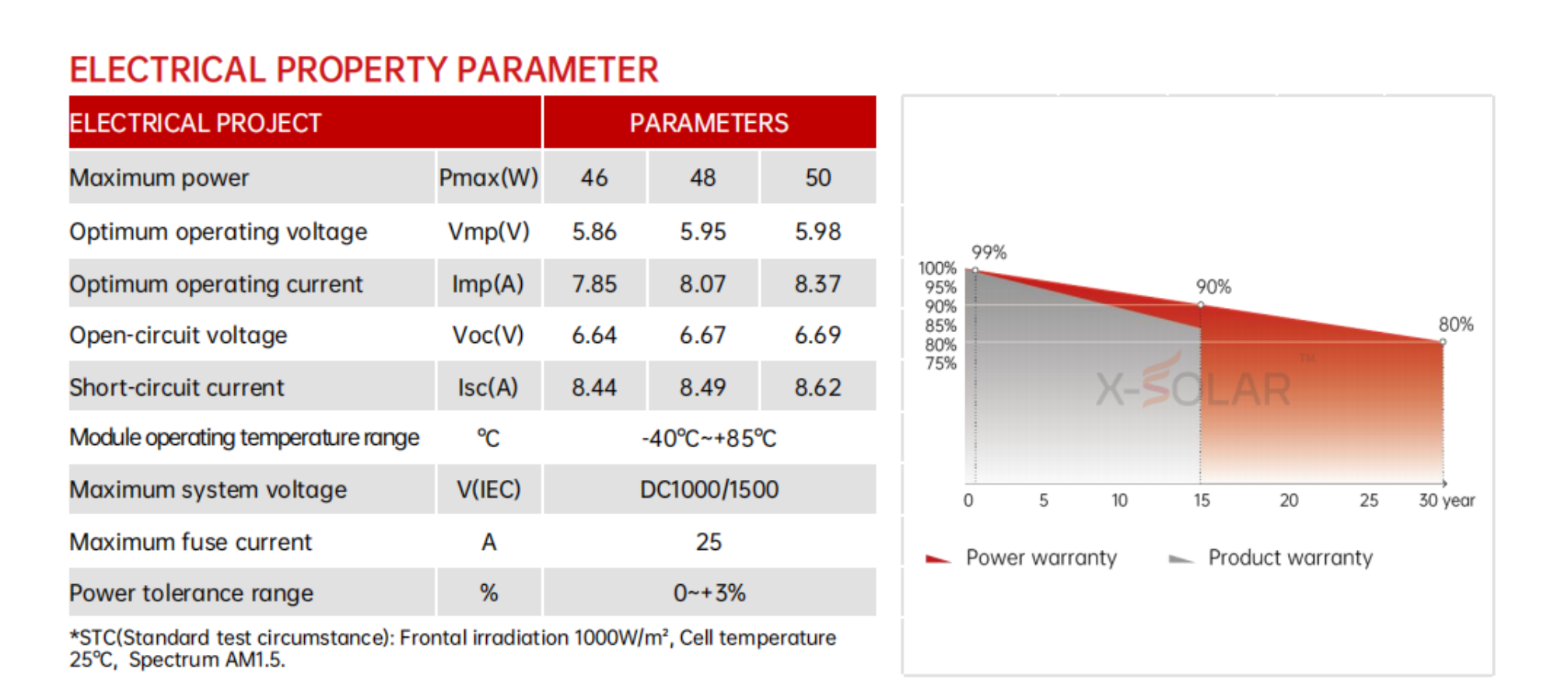

Technical Parameters

• Max Power: 50W • Conversion Efficiency: 23.8% • Operating Voltage: ~5.98V • Operating Current: ~8.37A • Temperature Range: -40°C to +80°C • Max System Voltage: 1000V / 1800V DC

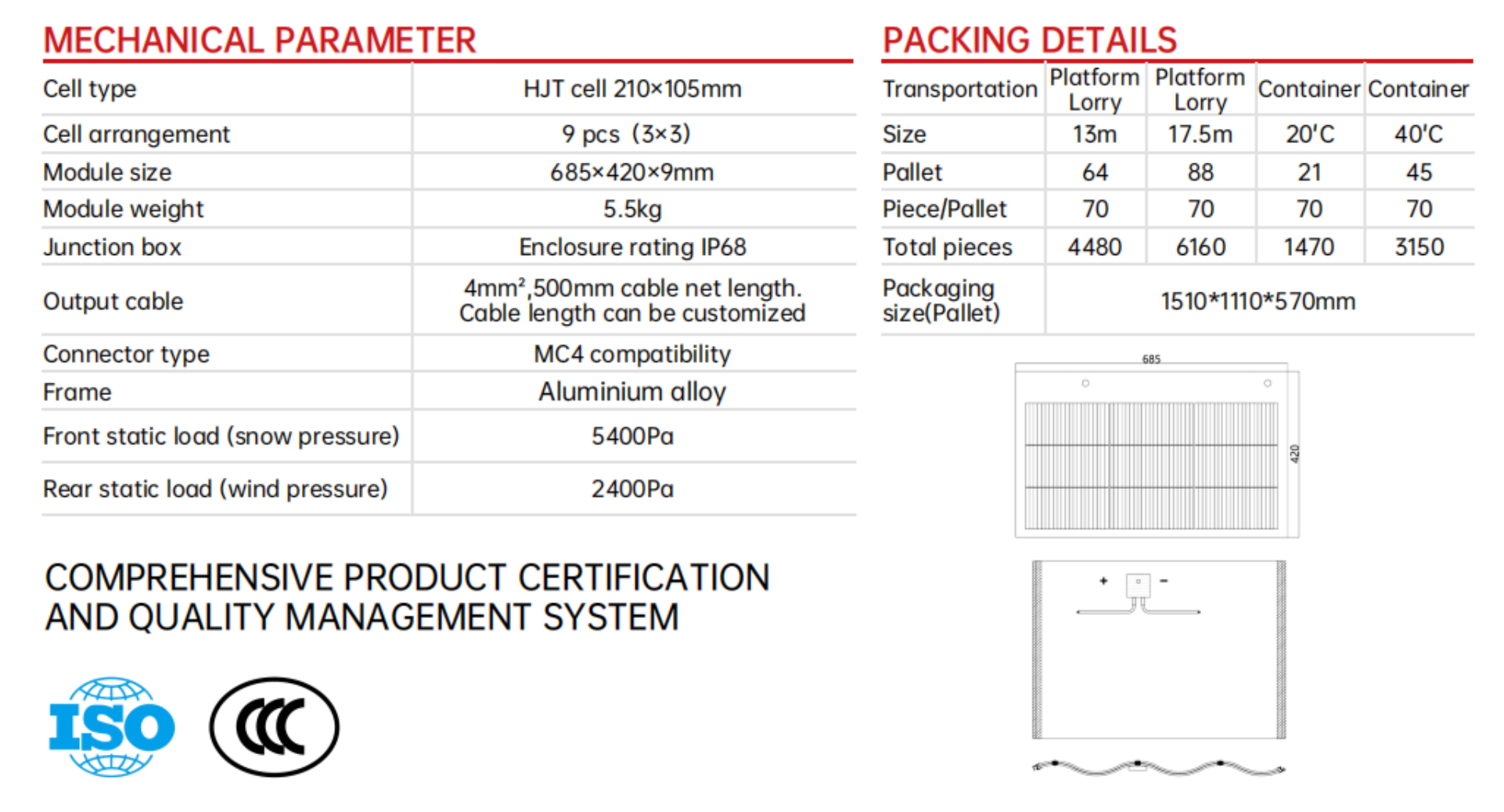

Physical Parameters

• Dimensions: 686mm × 240mm × 9mm • Weight: 5.3 kg • Cell Type: HJT • Frame: Aluminum Alloy • Load Capacity: 8400Pa (Front) / 2400Pa (Rear)

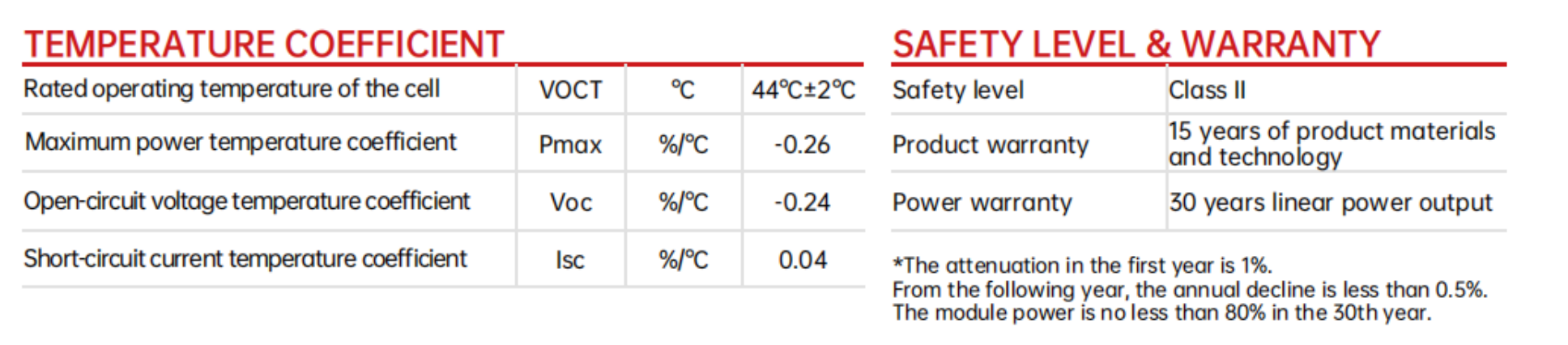

Warranty Information

• Product Warranty: 15 years • Power Warranty: 30 years linear output • Safety Rating: Class A

Application Scenarios

• Residential curved or tiled roofs • Commercial & architectural buildings • Heritage or historical structures • Custom sloped or curved surfaces • Aesthetic solar integration projects

Installation & Compatibility

• Easy integration with existing roofing • IP68 junction box • MC4-compatible connectors • Custom cable length available • Suitable for varied climates and loads
