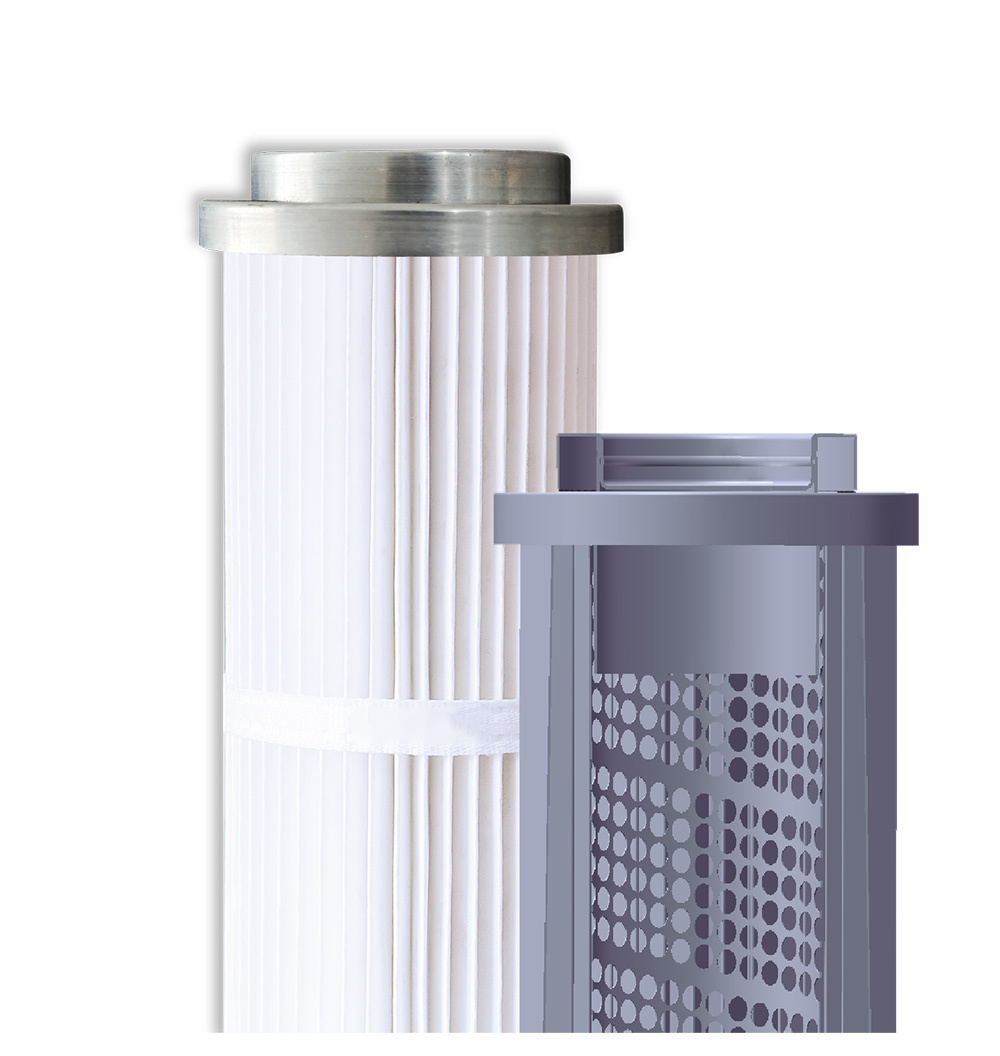

High-efficiency cartridge

Independently R&D energy-saving filter material products,have multiple advantages such as "high efficiency, good effect, stable structure, convenient installation and outstanding cost performance" compared with the traditional bag filter process.

  • High-efficiency cartridge

Description

The product is equipped with high-permeability filter paper and exclusive ePTFE-coated filter, which ensures excellent performance such as good water repellency, excellent air permeability, and corrosion resistance.

Its unique V-shaped folding structure significantly increases the filter material area of products of the same specification, enhancing the product's ability to capture fine dust particles.

Its integrated design and high-quality automatic production process make the product structure more stable and the quality control more superior, this combined process has a more efficient and convenient installation method compared to the traditional bag cage craft. It is an extremely cost-effective filter material product used in the ultra-low emission treatment of industrial smoke dust.

   Product process
  • Surface nano-fiber layer coating - hydrophobic, breathable and corrosion-resistant

  • Belt technology - The belt bonding process takes advanced fully automatic ultrasonic welding technique.

  • Base material flame retardant / waterproof / water repellent / anti-static treatment --improve flame retardant performance, anti-wetness performance, and reduces surface resistivity.

  • Inner net technology - Select high-quality galvanized steel with continuous punching and coiling to form the supporting inner net.

  • Vertical seal - ultrasonic welding, good looking & firm, corrosion-resistant and impact-resistant



Download

Structural features

The cover and the central tube are connected by welding,avoid the traditional filter cartridge's body falling off due to the reliance on glue to bear the gravity. Meanwhile, also avoid cartridge body shape change by twisting force during running under traditional adhesion craft.
The bandage and the longitudinal seal are welded by ultrasonic, which is very strong, corrosion-resistant and shock-resistant.

The advantage of expanded filter paper compared to ordinary filter paper:

Thicker under same gsm.
▪ Better breathability and uniformity ratio.
▪ Better filtration performance, larger surface area, good to catch dust.
▪ Easy for infiltration agent to form protective film on fiber surface when expanded filter paper after treatment.
▪ Expanded filter paper is good for base material and film recombination, improve film lamination fastness.

Advantages

Save land, Save materials, Save money: Compared with the traditional bag filter, the same air volume cartridge filter has small volume, less site occupation, saving materials and saving investment costs.

Product design integration, standardization, convenient installation, to avoid matching problems with fliter plate, bag cage.

The end cap is welded with the center pipe to avoid the problem of easy fracture of traditional adhesive; Band and longitudinal sealing ultrasonic welding, strong, corrosion resistance, impact resistance. The service life is up to 5 years.

Higher filtration accuracy - 20 years of membrane filtration experience, Ultra-low emission standards 5mg can be achieved.

low pressure difference, energy-sav30% ing and cost-reducing -low pressure difference operation, saving fan power consumption, energy saving 30%.

Advantages

Excellent Material

Excellent Material

Polyester, PPS, aramid, ePTFE and other high efficiency and low resistance filter materials are optimal selected. Easy to clean, waterproof and oil proof, high filtration and high precision, low resistance and more energy efficiency.
Reliable Quality

Reliable Quality

Advanced automatic ultrasonic fusion welding process, accurate control, near-zero tolerance. High quality support internal mesh, integrated end cover welding process, hard to detached, more reliable.
Reasonable structure

Reasonable structure

leading production and development experience, unique V-shaped pleated structure, effectively increase 3-5 times the filtration area, so that the product spacing is uniform, rust prevention, corrosion prevention, easy to clean, durable.
