Orange Curved-Tile/XSDCM-50-H/Multiple color options

Name: Orange Curved-Tile/XSDCM-50-H/Multiple color options
Brand: Techrise
SKU: PV Module-X-Solar-XSDCM-50-H
Availability: InStock
Rating: 5 (1 reviews)

No.PV Module-X-Solar-XSDCM-50-H

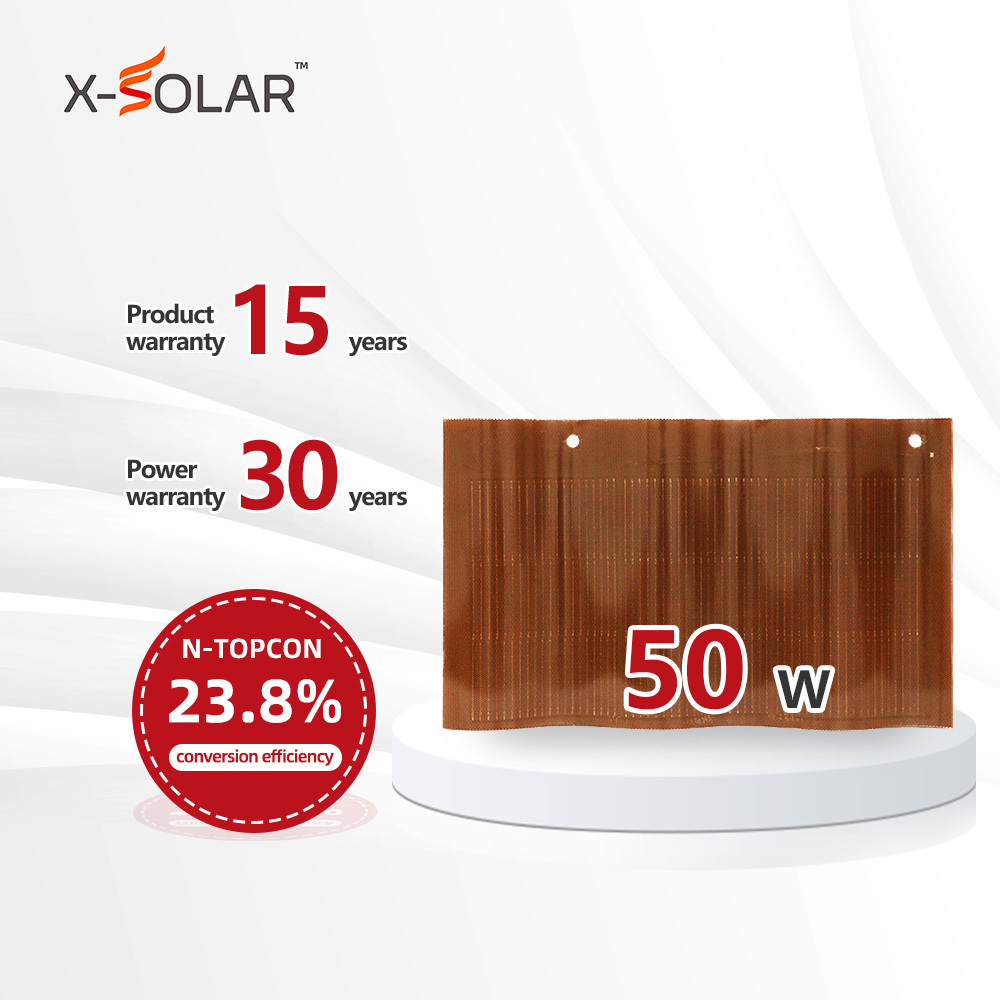

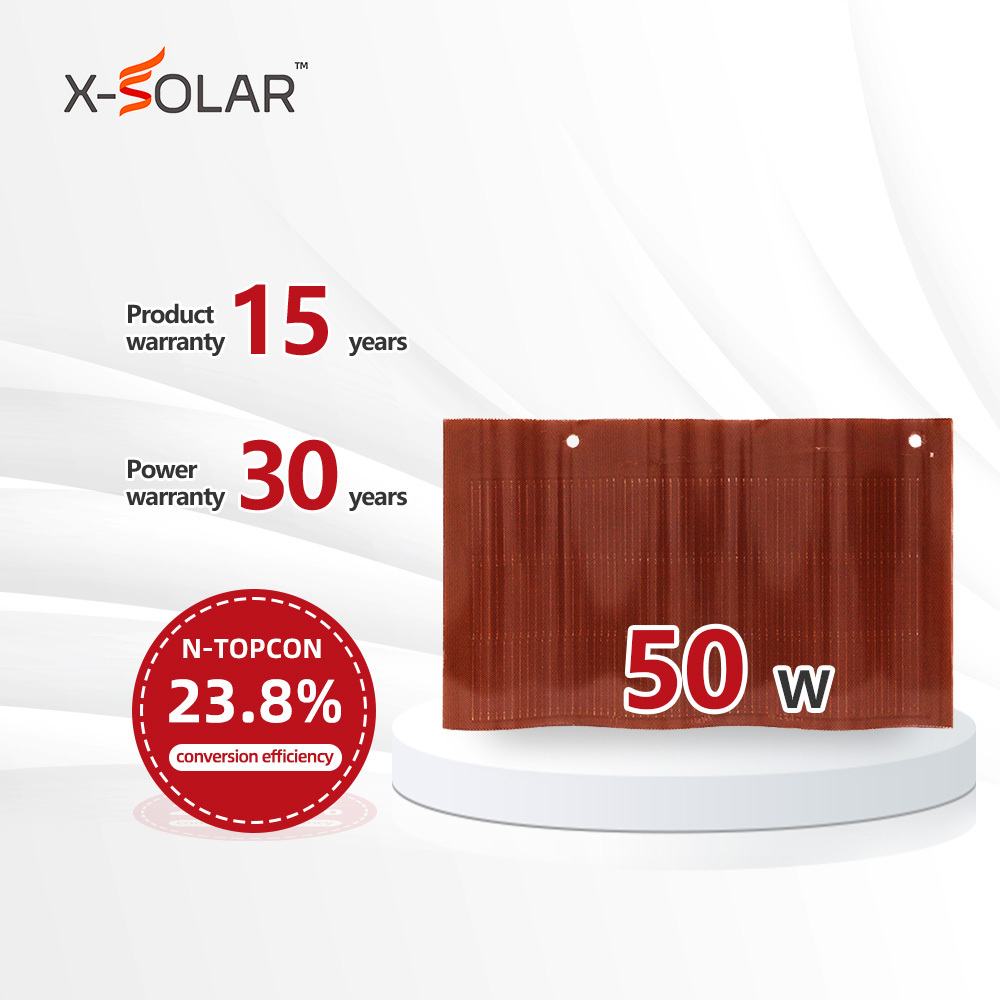

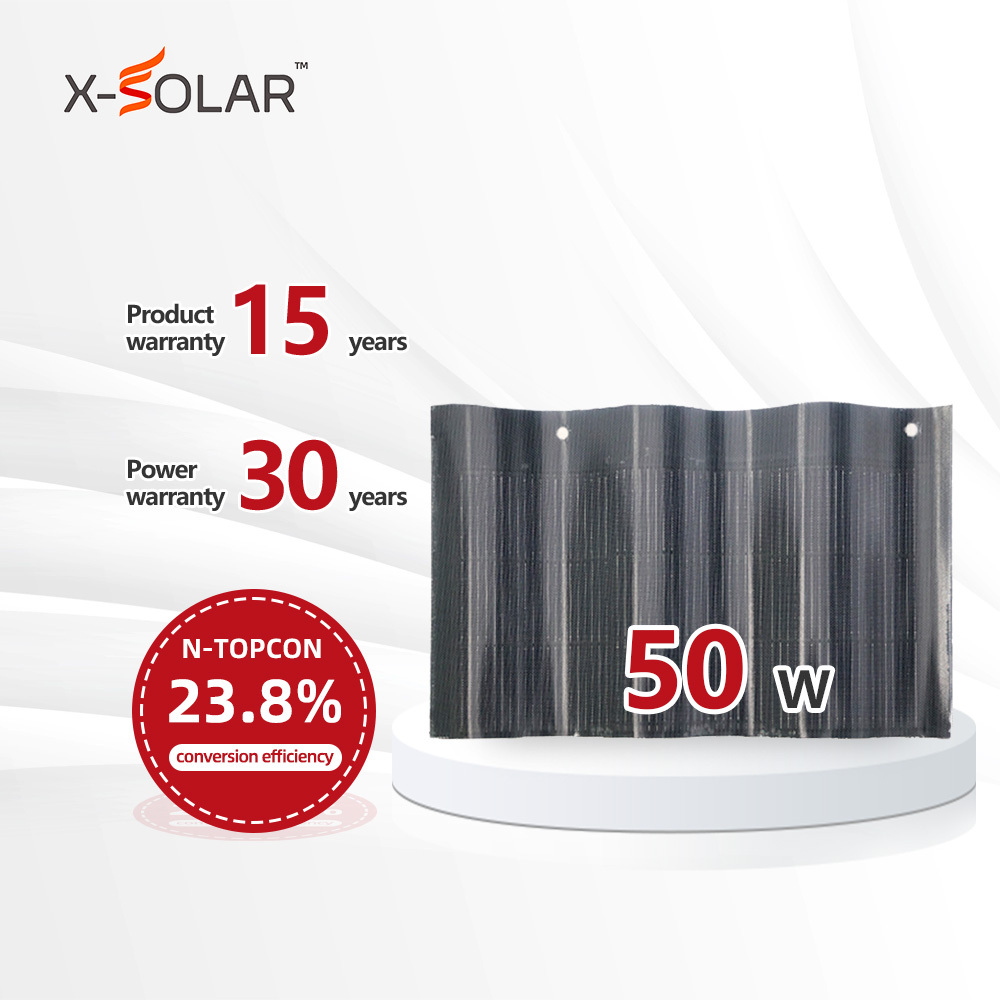

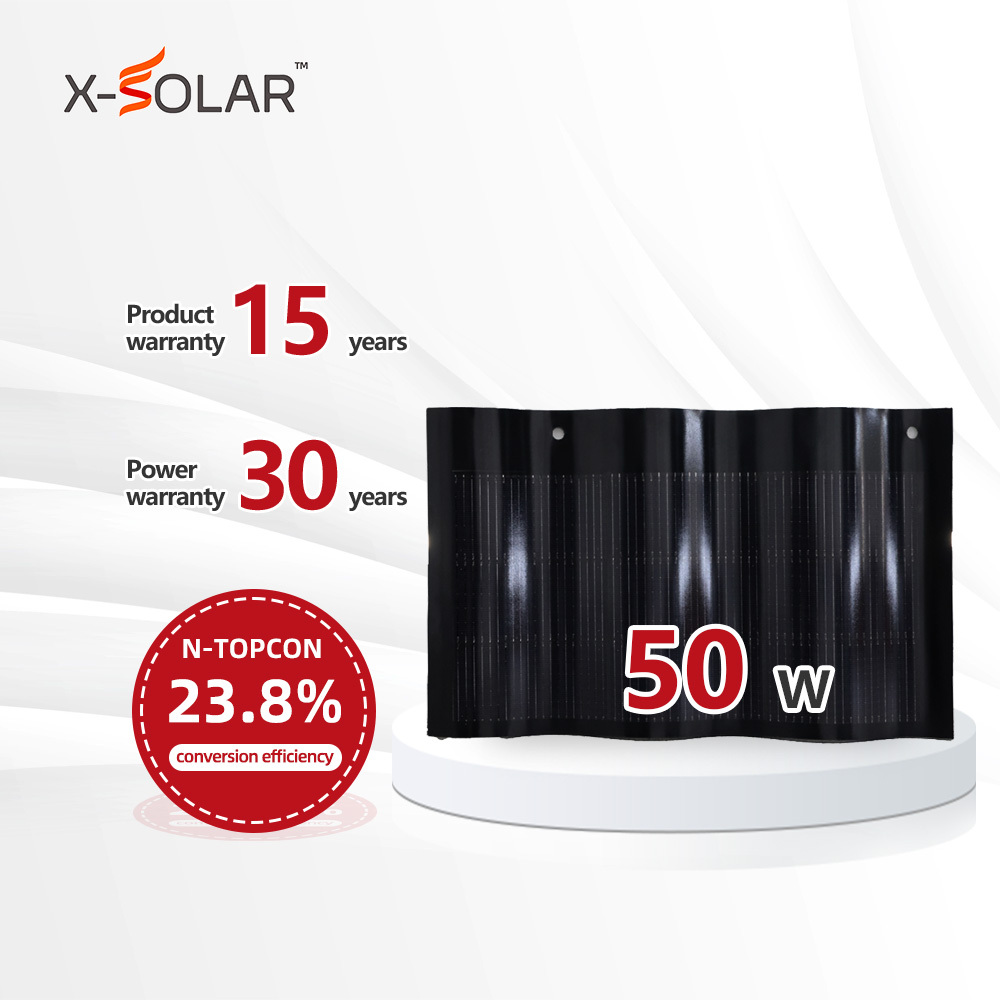

X-SOLAR 50W Flexible Solar Module | High-Efficiency & Durable Power for Curved Surfaces

Utilizing advanced N-TOPCON technology, it achieves 23.8% conversion efficiency for superior power generation. Designed to install seamlessly on a wide range of surfaces—including curved tile roofs, architectural buildings, and historical structures—it enables elegant solar integration where traditional panels cannot go.

Technical Parameters

• Max Power: 50W • Conversion Efficiency: 23.8% • Operating Voltage: ~5.98V • Operating Current: ~8.37A • Temperature Range: -40°C to +80°C • Max System Voltage: 1000V / 1800V DC

Physical Parameters

• Dimensions: 686mm × 240mm × 9mm • Weight: 5.3 kg • Cell Type: HJT • Frame: Aluminum Alloy • Load Capacity: 8400Pa (Front) / 2400Pa (Rear)

Warranty Information

• Product Warranty: 15 years • Power Warranty: 30 years linear output • Safety Rating: Class A

Application Scenarios

• Residential curved or tiled roofs • Commercial & architectural buildings • Heritage or historical structures • Custom sloped or curved surfaces • Aesthetic solar integration projects

Installation & Compatibility

• Easy integration with existing roofing • IP68 junction box • MC4-compatible connectors • Custom cable length available • Suitable for varied climates and loads
