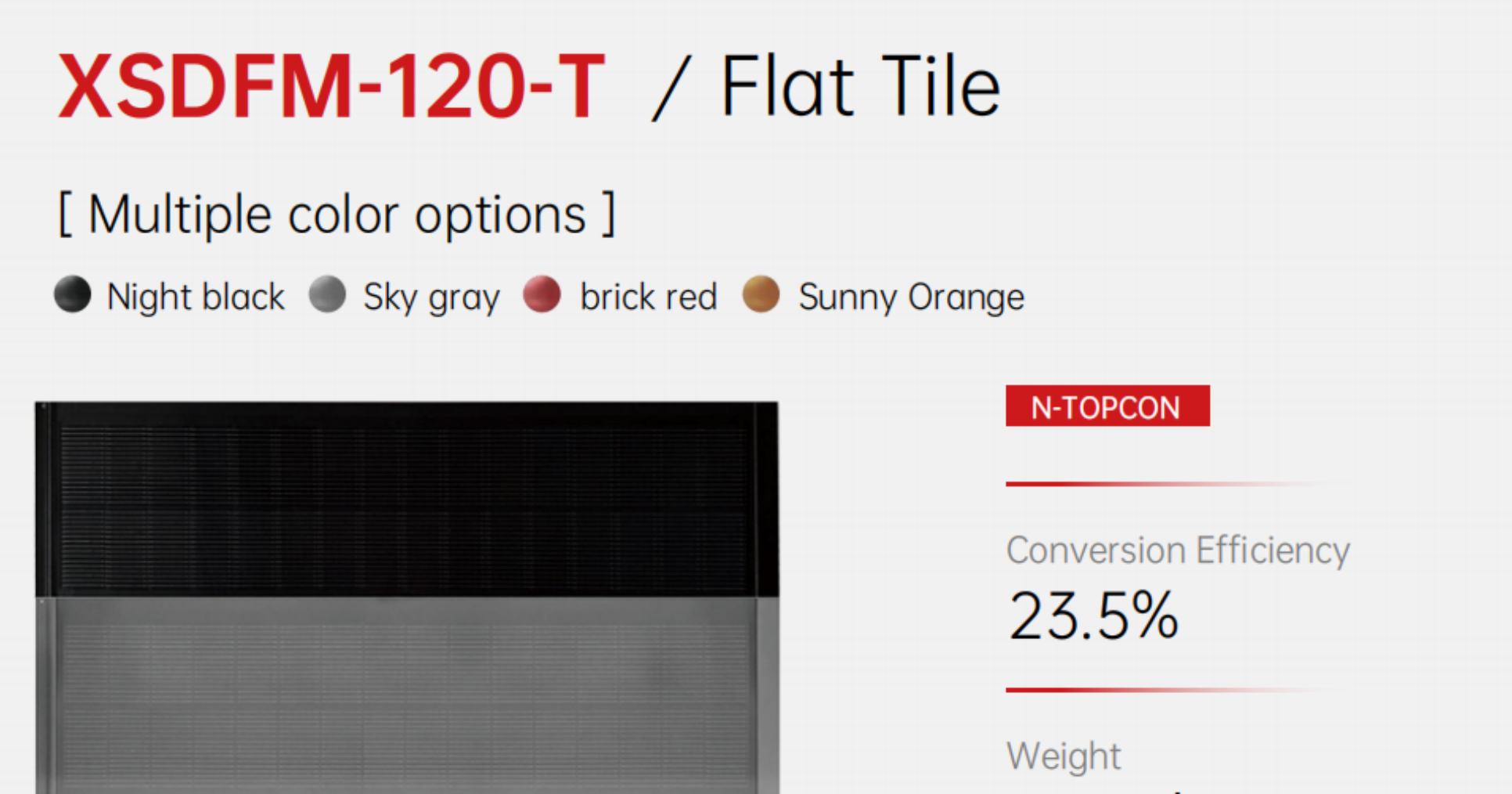

Flat Tile -XSDFM-120-T/Multiple color options

Name: Flat Tile -XSDFM-120-T/Multiple color options
Brand: Techrise
SKU: X-SOLAR Flat Tile -XSDFM-120-T
Availability: InStock
Rating: 5 (1 reviews)

No.X-SOLAR Flat Tile -XSDFM-120-T

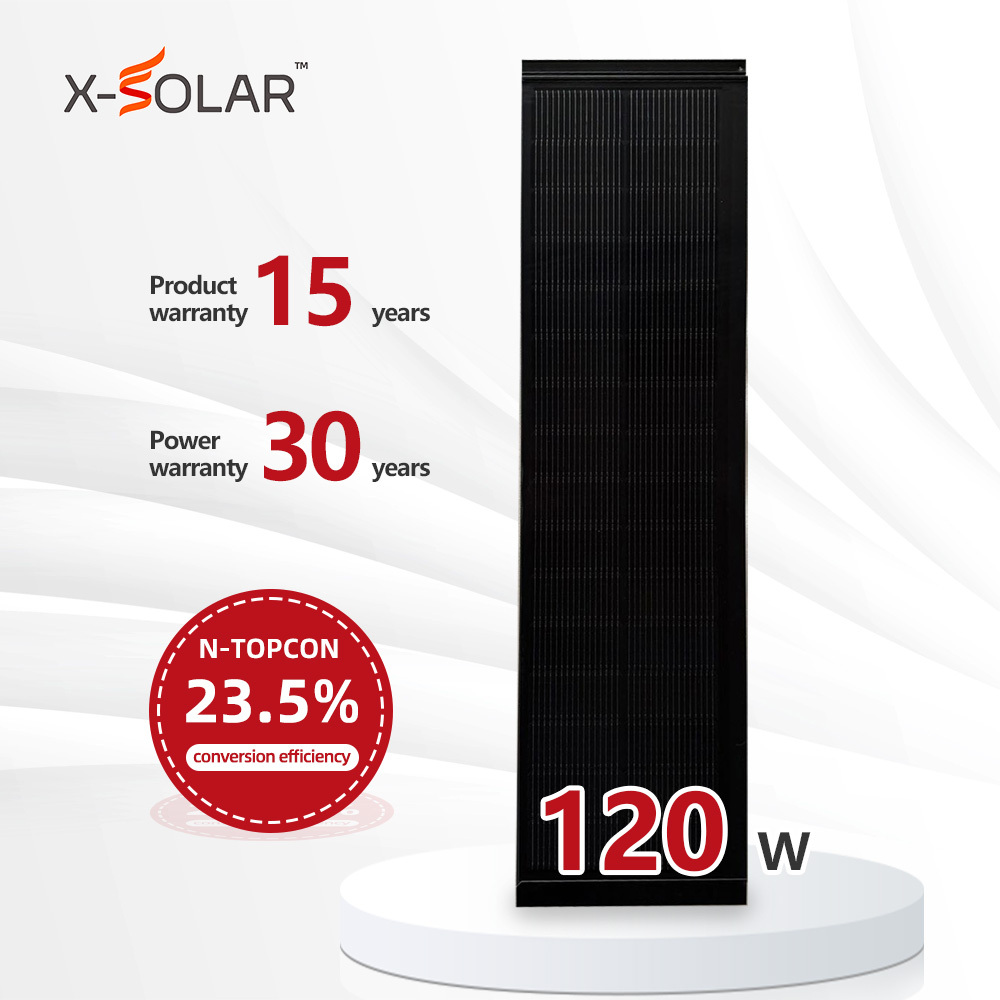

X-SOLAR 120W Dual-Glass Flat Solar Module | High-Efficiency BIPV Solution for Flat Roofs
Adopting advanced N-TOPCON technology, it achieves high conversion efficiency for stable power generation. Designed to integrate seamlessly with flat-roofed buildings, residential complexes, and commercial structures, it combines energy production with architectural aesthetics—an ideal choice for modern building-integrated photovoltaic (BIPV) projects.

Technical Parameters

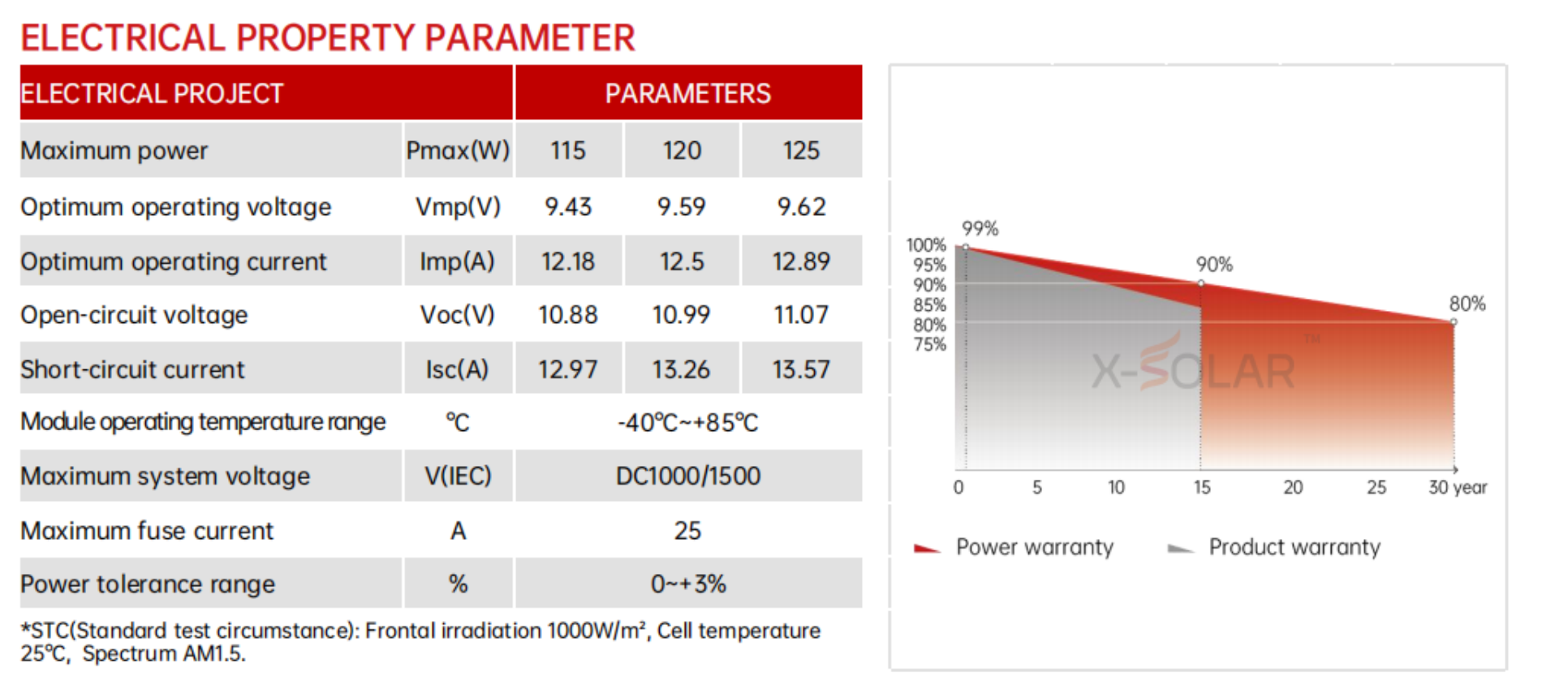

• Max Power: 115W / 120W / 125W • Conversion Efficiency: High-efficiency range (based on N-TOPCON technology) • Open-Circuit Voltage (Voc): 10.88V / 10.99V / 11.07V • Operating Current (Imp): 12.18A / 12.5A / 12.89A • Temperature Range: -40°C ~ +85°C • Max System Voltage: 1000V / 1500V DC

Physical Parameters

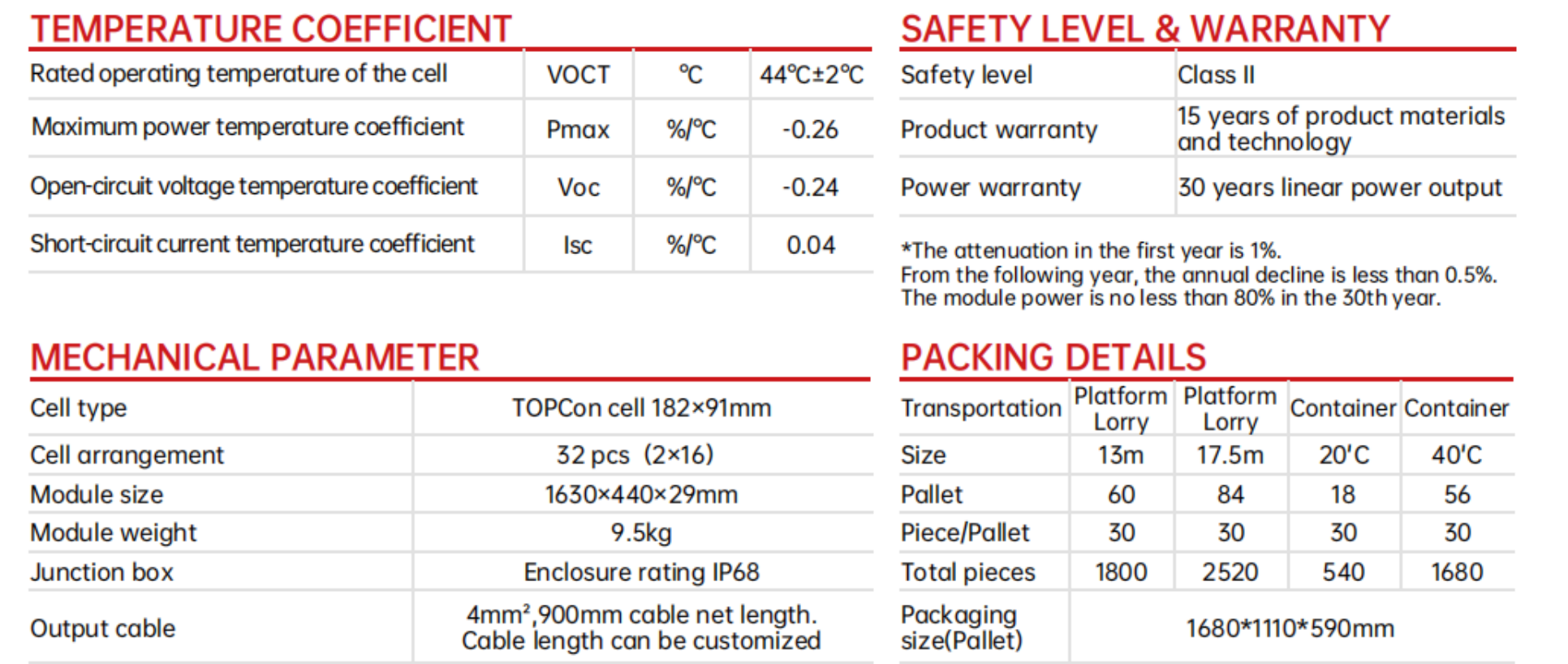

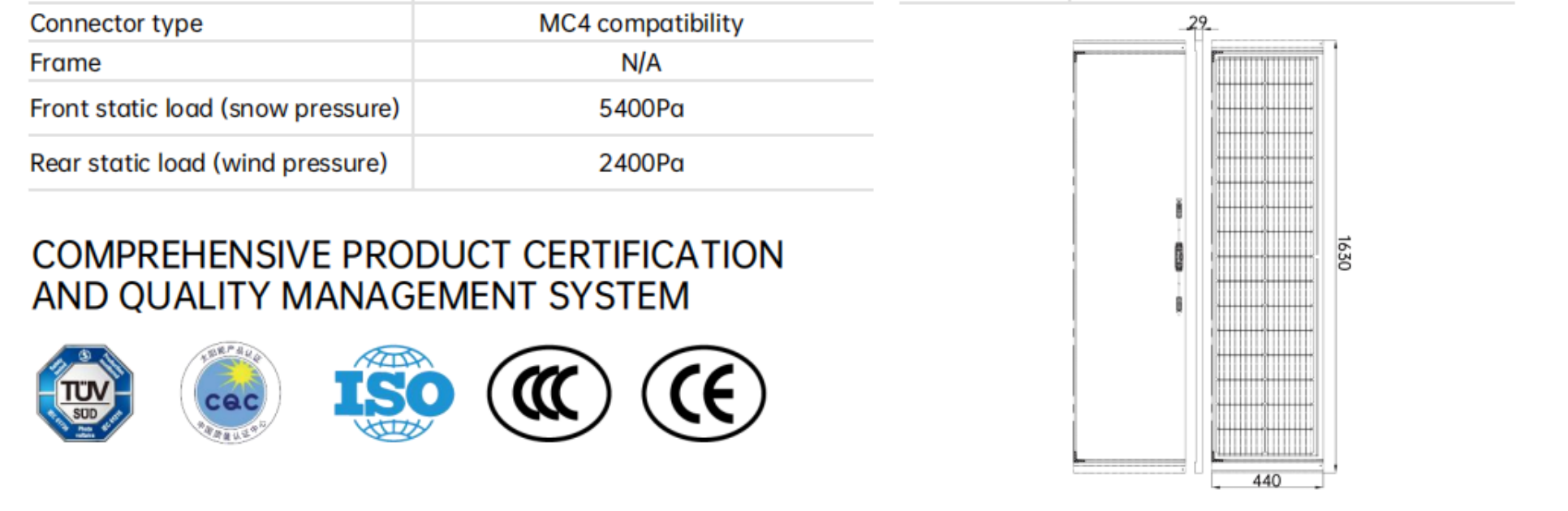

• Dimensions: 1630×440×29mm • Weight: 9.5kg • Cell Type: N-TOPCON cells (182×91mm) • Cell Arrangement: 32 pieces (2×16 layout) • Junction Box: IP68 Enclosure Rating • Connector Type: MC4-compatible • Surface Technology: Nano-film layered waterproof sealing

Warranty Information

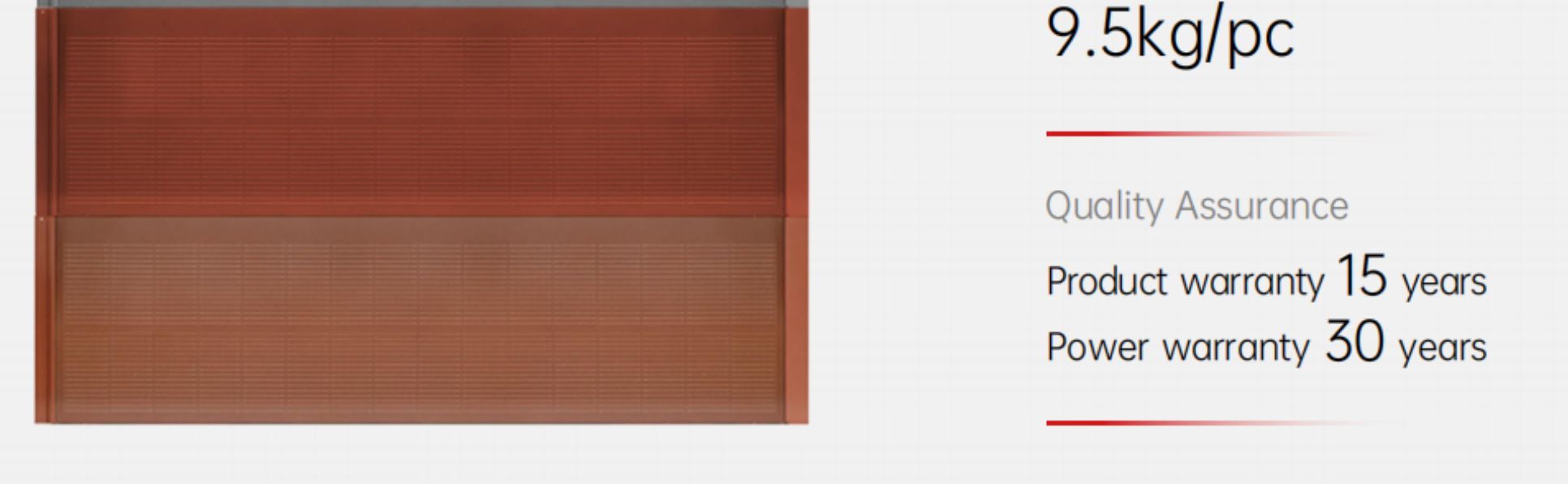

• Product Warranty: 15 years (covers material and manufacturing defects) • Power Warranty: 30 years linear power output (maintains high stability long-term) • Safety Level: Class II (meets international safety standards)

Application Scenarios

• Residential flat rooftops • Commercial building BIPV projects • Green construction initiatives • Modern architectural designs requiring aesthetic integration

Installation & Compatibility

• Direct replacement for traditional flat roof tiles (no extra mounting brackets needed) • Lightweight design reduces rooftop load • Universal MC4 connectors for easy inverter compatibility • Customizable cable length and color options available
